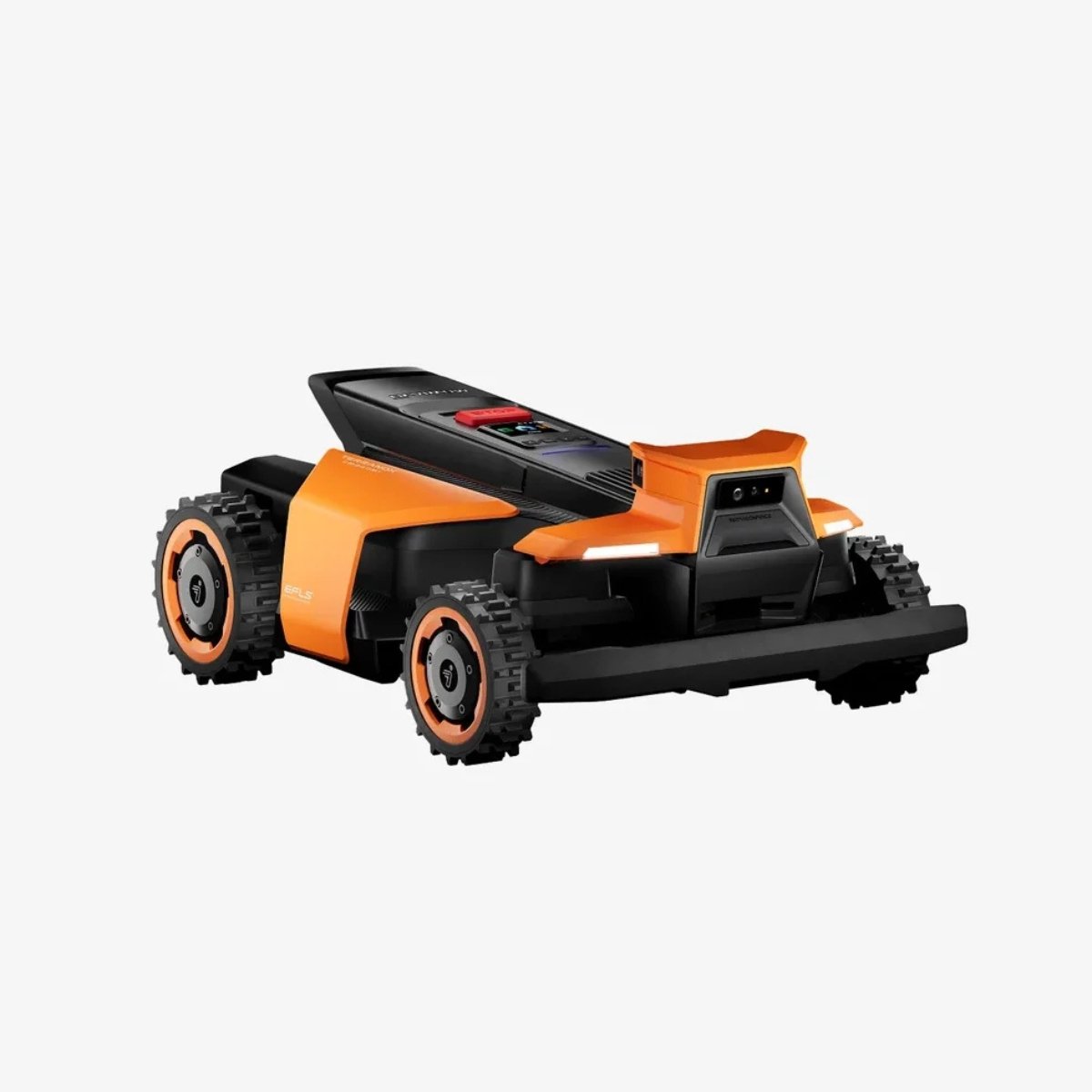

Navimow Terranox CM240M1 Robotic Lawn Mower

Description

Navimow Terranox CM240M1 Robotic Lawn Mower: Maximum-Capacity Mowing for Very Large Grounds

The Navimow Terranox CM240M1 robotic lawn mower is engineered for large-scale commercial lawn care. It delivers intelligent, efficient and eco-friendly mowing, designed to reduce labour and maintain consistent turf quality across demanding environments such as sports turf, golf courses, large parks, schools, councils and company headquarters. With a 25Ah battery and a recommended mowing area of up to 24,000m², it’s the highest-capacity model in the Terranox range, backed by a 2-year comprehensive device warranty.

Built for Bigger Grounds

With a mowing speed of up to 3.5 km/h and a 43cm cutting width, the CM240M1 delivers serious productivity. It mows around 2,000m² per charge, and a single unit can mow an area equivalent to a full-sized soccer pitch in a single day, helping keep large green spaces consistently well presented.

Turf-Safe Xero-Turn Steering

Thanks to Xero-Turn steering, the Terranox has received the Turf-Safe award from Germany’s TÜV Rheinland for minimal lawn damage. The system gives zero-turn capability when turning on the spot, such as at the edges of lawns, and gentle Ackermann steering when turning in arcs, so there is no scraping, no slipping and no grass wear.

All-Terrain Mastery with an AWD System

An advanced four-wheel-drive system lets the Terranox handle uneven ground, rugged paths and slopes up to 40° (84%), while keeping traction and stability without damaging the turf. It can step over obstacles up to 7cm high (15cm on gentle slopes).

Easy Setup: Drop and Go

There are no boundary wires to bury. The Terranox automatically detects boundaries and creates freehand maps, and GeoSketch™ provides real-scene maps and intuitive edge editing for fast, accurate setup.

Precision Positioning with Network RTK

Triple-frequency Network RTK, 360° camera-based VSLAM and Visual Inertial Odometry give centimetre-level accuracy. The system stays stable even in complex or partially obstructed environments. With Network RTK over 4G, there’s no need to install a local antenna or a physical base station. In areas with no 4G, install the included Antenna RTK. The mower is compatible with multiple certified Network RTK providers and connects to the strongest signal.

VisionFence™ Intelligent Object Detection

A 360° RGB camera and ToF sensors give panoramic obstacle avoidance with high sensitivity. The Terranox recognises and avoids more than 200 types of obstacles, including animals and yard objects, which supports safe operation in complex commercial settings.

Premium Cutting Quality

Dual cutting motors, two decks and 12 blades deliver clean, consistent results across all grass types. A floating cutting deck follows the contours of the ground, anti-clogging discs keep the cut clean, and cutting height adjusts automatically.

Effortless Fleet Management with NavimowFleet™

Use the Navimow app, or the advanced NavimowFleet™ app and web portal, to manage any number of mowers professionally. NavimowFleet is designed for commercial operators, golf clubs, schools and councils deploying multiple Navimow units across one or many sites. One operator can monitor performance, assign tasks and edit maps remotely.

Clean, Quiet Operation

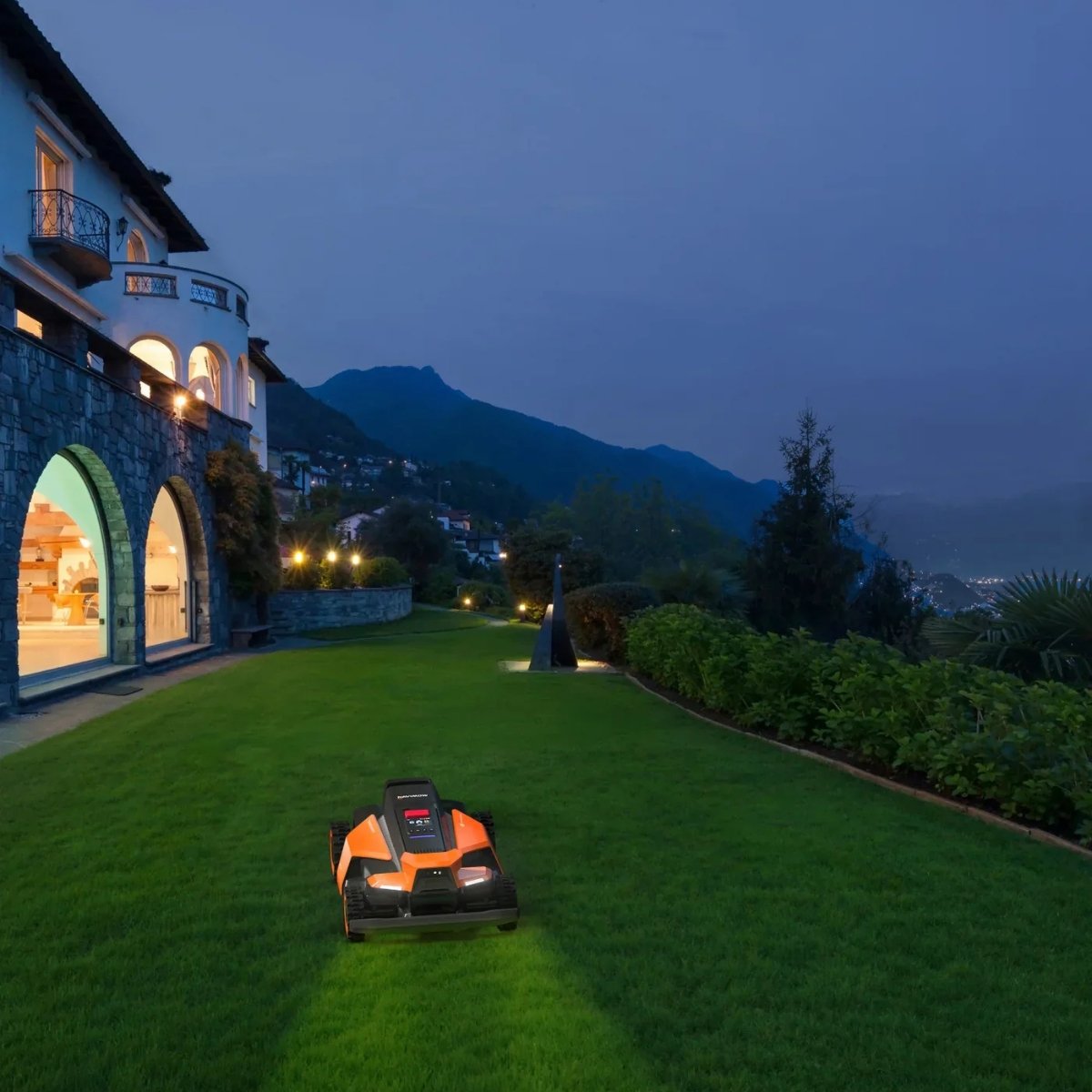

At just 68 dB(A), the Terranox is quiet enough for evening or nighttime use. With zero direct emissions, it supports cleaner air and a more comfortable environment than fuel-powered equipment.

Built for Every Kind of Ground

• Sports turf: consistent, well-presented playing surfaces.
• Golf courses: precise, repeatable mowing across large areas.
• Large parks: hands-off mowing for wide-open public spaces.
• Headquarters and campuses: neat grounds without the labour of manual mowing.

Weather-Ready and Secure

The Terranox is IP66 rated, with a weather forecast function and rain sensor. GPS tracking and an out-of-boundary alarm help protect your investment, and over-the-air (OTA) updates keep it up to date. A 3.5 inch colour LCD shows status at a glance.

2 Years of 4G Data Included

The CM240M1 includes 2 years of 4G data. After that, renewal is approximately $70 per year through an in-app purchase.

Navimow Terranox CM240M1 Specifications

Protect Your Terranox with Garage X

The Garage X is designed to suit the Terranox as well as the Navimow X4 Series. It’s available separately for $799, and it’s open for pre-order now with stock arriving in December 2026.

Which Terranox Is Right for You?

The CM240M1 suits areas up to 24,000m². Have smaller grounds? The Navimow Terranox CM120M1 covers up to 12,000m² with a 20Ah battery, and the Navimow X450 covers up to 5,000m² with the same 4WD platform.
