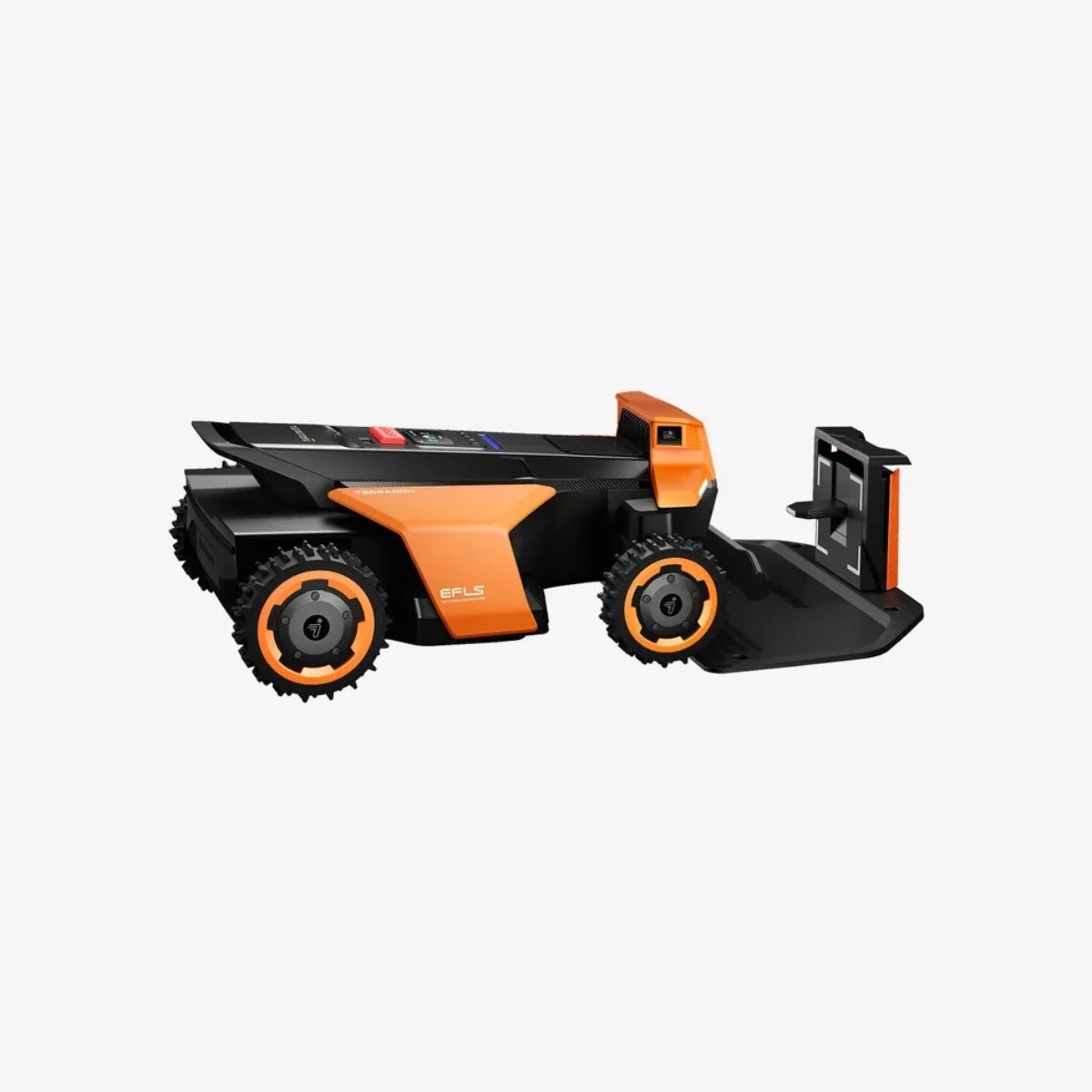

Navimow Terranox CM120M1 Robotic Lawn Mower: Commercial-Grade Mowing for Large Grounds
The Navimow Terranox CM120M1 robotic lawn mower is engineered for large-scale commercial lawn care. It delivers intelligent, efficient and eco-friendly mowing, designed to reduce labour and maintain consistent turf quality across demanding environments such as sports turf, golf courses, large parks, schools, councils and company headquarters. With a 20Ah battery and a recommended mowing area of up to 12,000m², it’s backed by a 2-year comprehensive device warranty.
Now Available to Pre-Order
The Terranox CM120M1 is available to pre-order now, with shipping scheduled for 6 November 2026. Secure yours with only a 10% deposit, based on the price shown on this page and fully refundable for any reason before dispatch.
Turf-Safe Xero-Turn Steering
Thanks to Xero-Turn steering, the Terranox has received the Turf-Safe award from Germany’s TÜV Rheinland for minimal lawn damage. The system gives zero-turn capability when turning on the spot, such as at the edges of lawns, and gentle Ackermann steering when turning in arcs, so there is no scraping, no slipping and no grass wear.

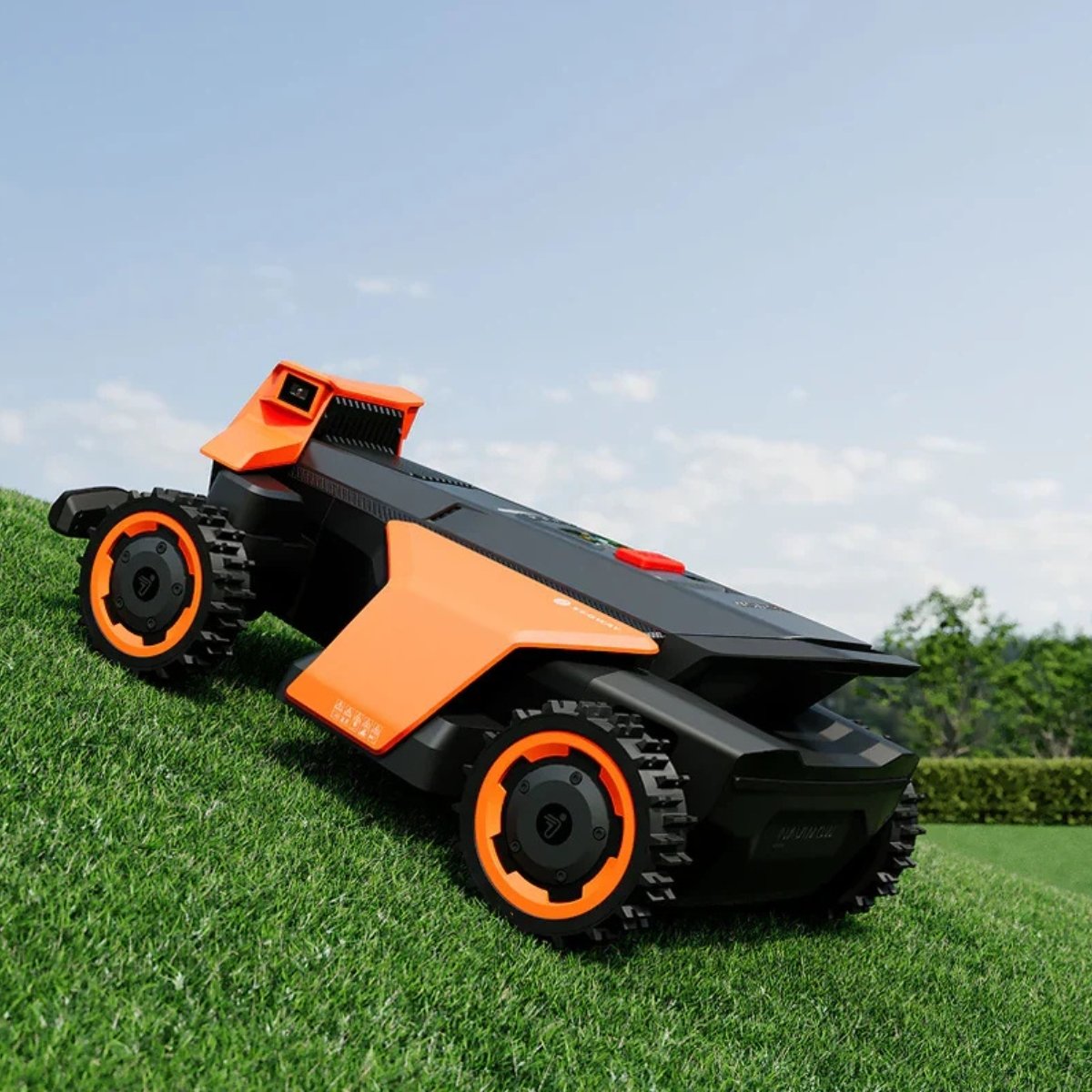

All-Terrain Mastery with an AWD System
An advanced four-wheel-drive system lets the Terranox handle uneven ground, rugged paths and slopes up to 40° (84%), while keeping traction and stability without damaging the turf. It can step over obstacles up to 7cm high (15cm on gentle slopes).
Easy Setup: Drop and Go
There are no boundary wires to bury. The Terranox automatically detects boundaries and creates freehand maps, and GeoSketch™ provides real-scene maps and intuitive edge editing for fast, accurate setup.

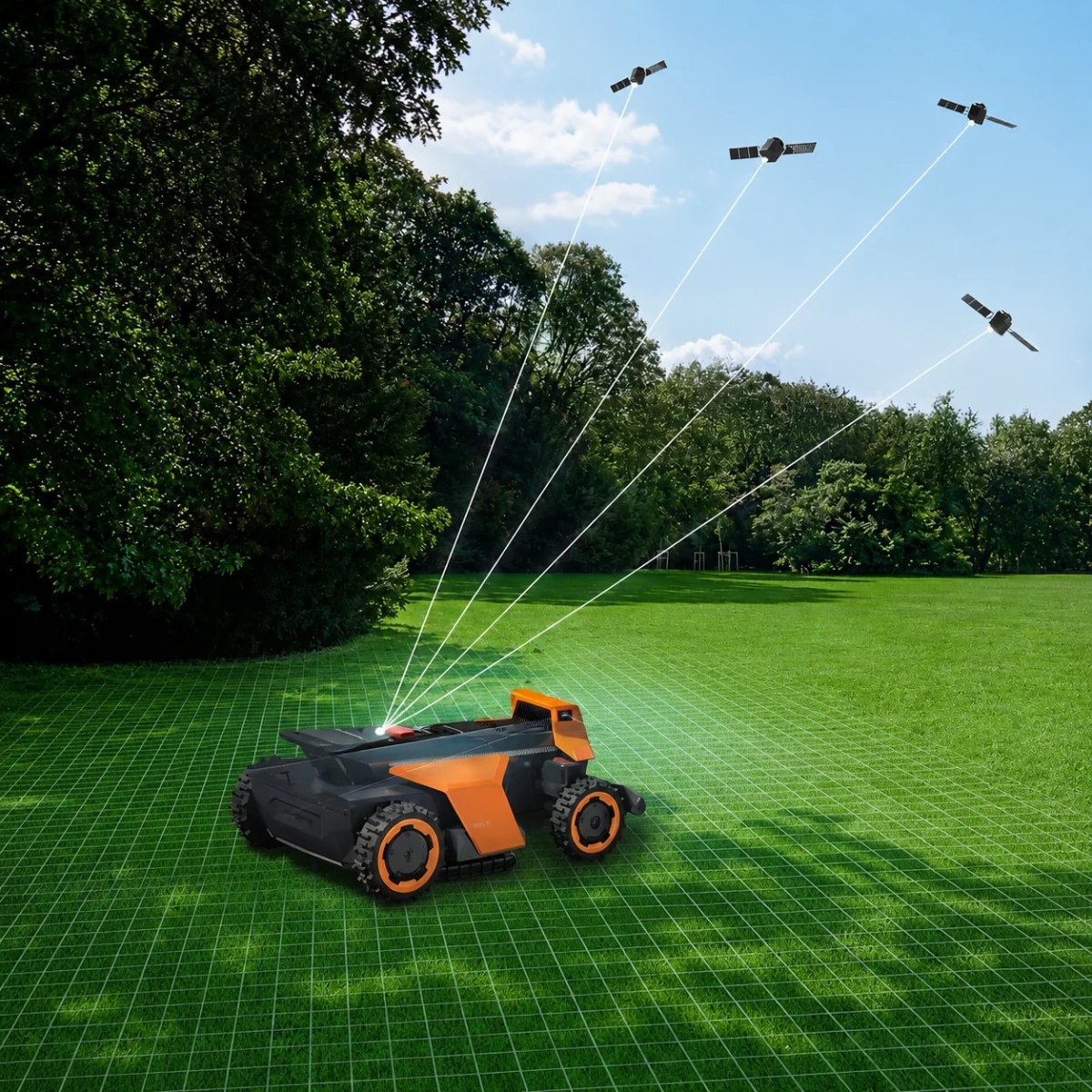

Precision Positioning with Network RTK
Triple-frequency Network RTK, 360° camera-based VSLAM and Visual Inertial Odometry give centimetre-level accuracy. The system stays stable even in complex or partially obstructed environments. With Network RTK over 4G, there’s no need to install a local antenna or a physical base station. In areas with no 4G, install the included Antenna RTK. The mower is compatible with multiple certified Network RTK providers and connects to the strongest signal.

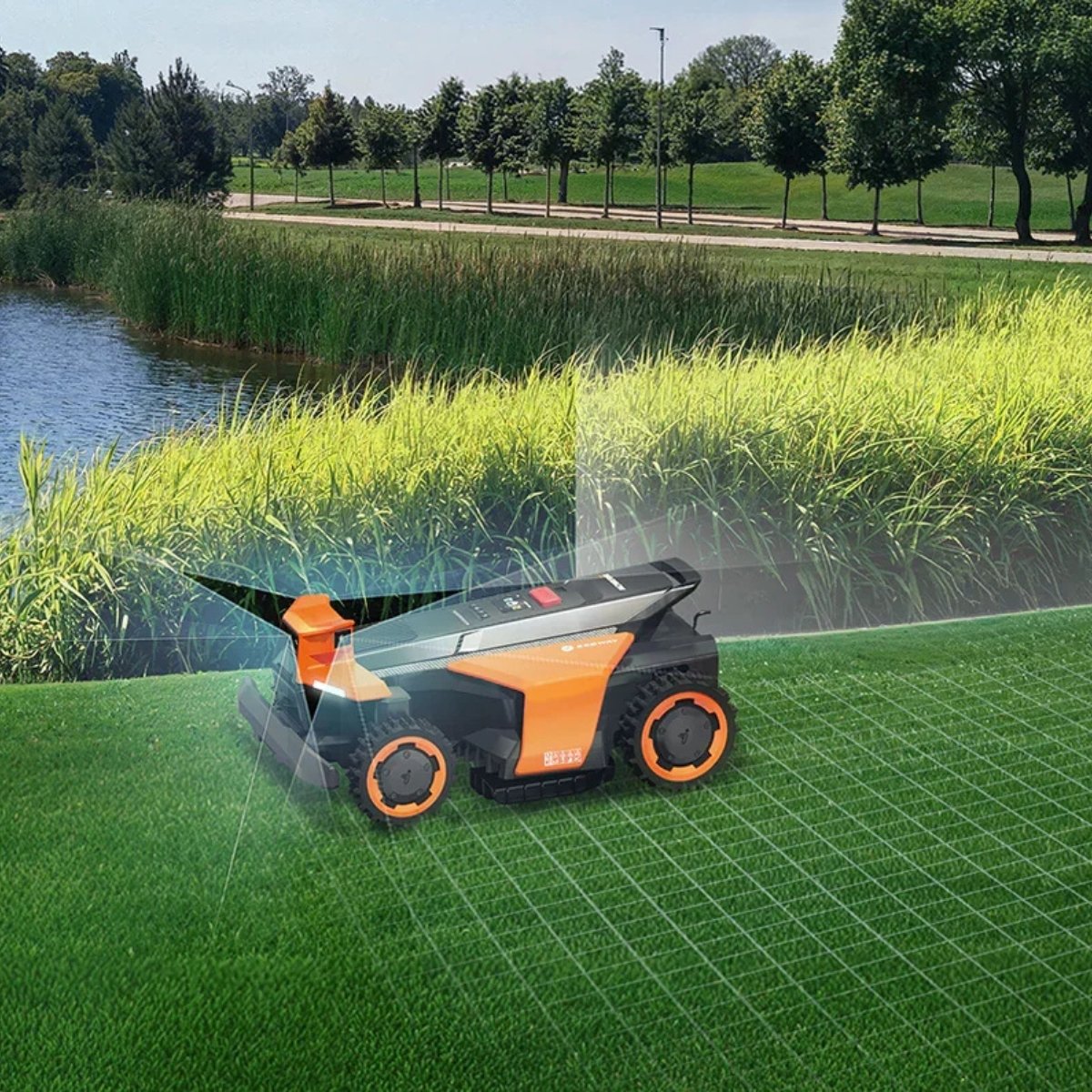

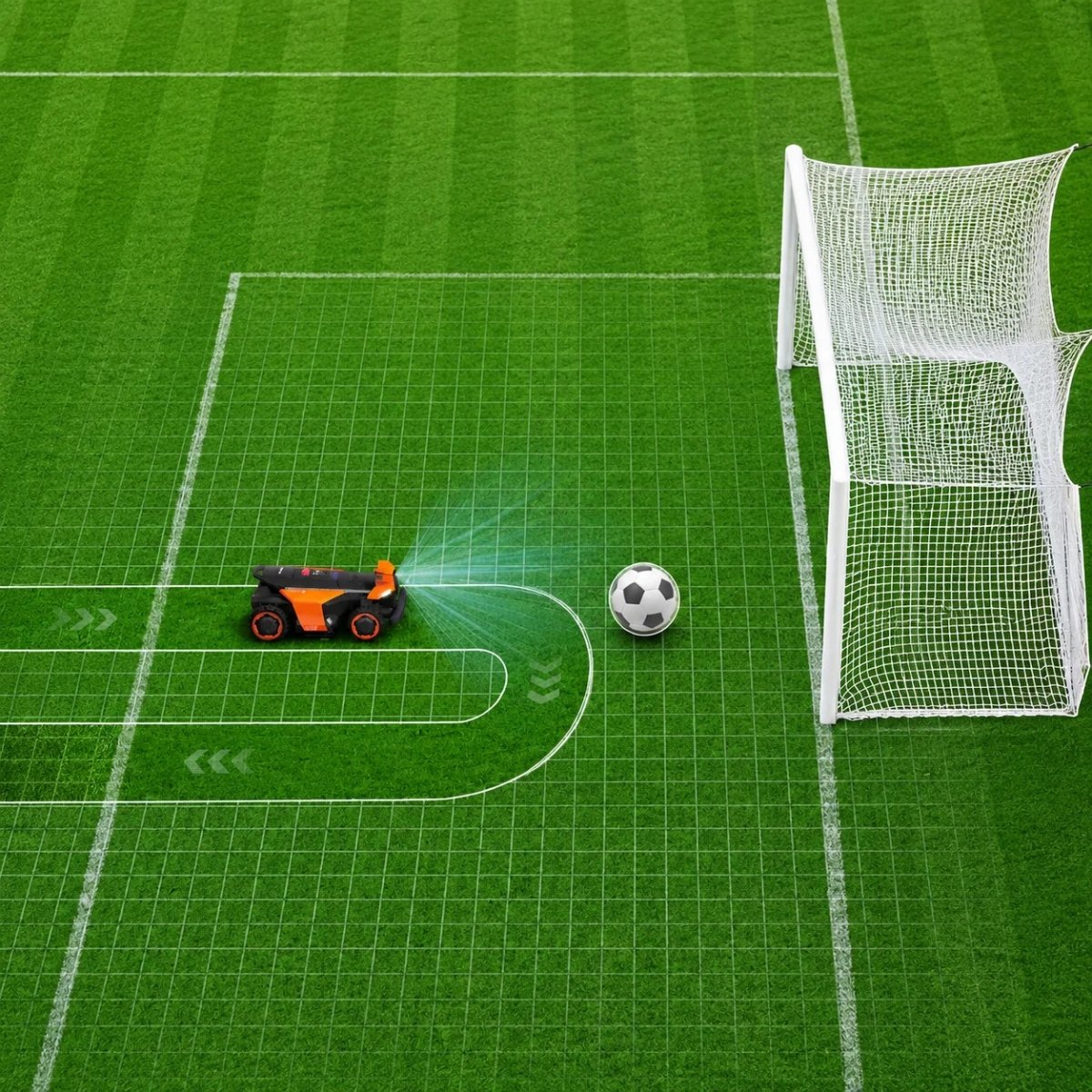

VisionFence™ Intelligent Object Detection
A 360° RGB camera and ToF sensors give panoramic obstacle avoidance with high sensitivity. The Terranox recognises and avoids more than 200 types of obstacles, including animals and yard objects, which supports safe operation in complex commercial settings.

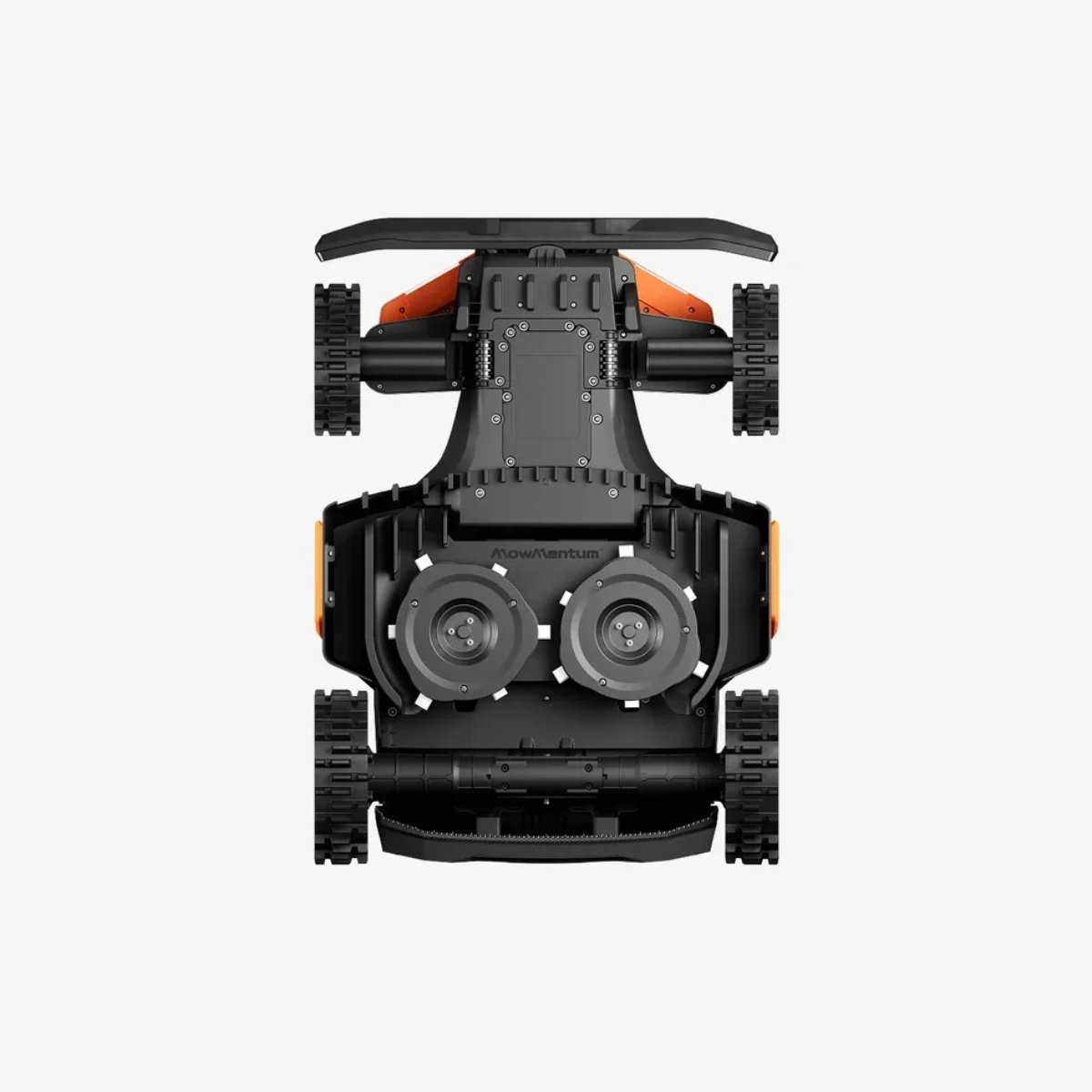

Premium Cutting Quality

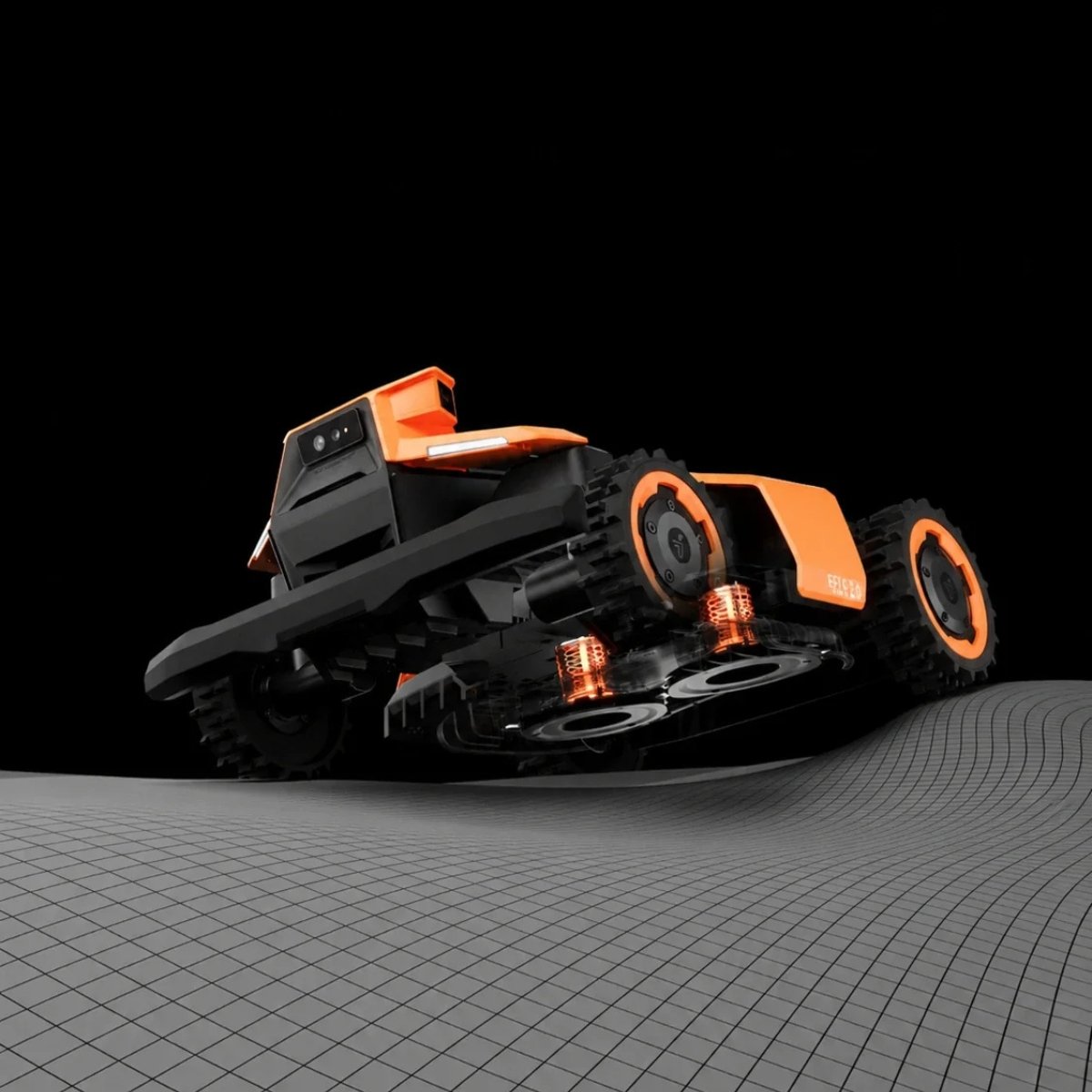

Dual cutting motors, two decks and 12 blades deliver clean, consistent results across all grass types, with a 43cm cutting width and a mowing speed of up to 3.5 km/h. A floating cutting deck follows the contours of the ground, anti-clogging discs keep the cut clean, and cutting height adjusts automatically.
Effortless Fleet Management with NavimowFleet™
Use the Navimow app, or the advanced NavimowFleet™ app and web portal, to manage any number of mowers professionally. NavimowFleet is designed for commercial operators, golf clubs, schools and councils deploying multiple Navimow units across one or many sites. One operator can monitor performance, assign tasks and edit maps remotely.

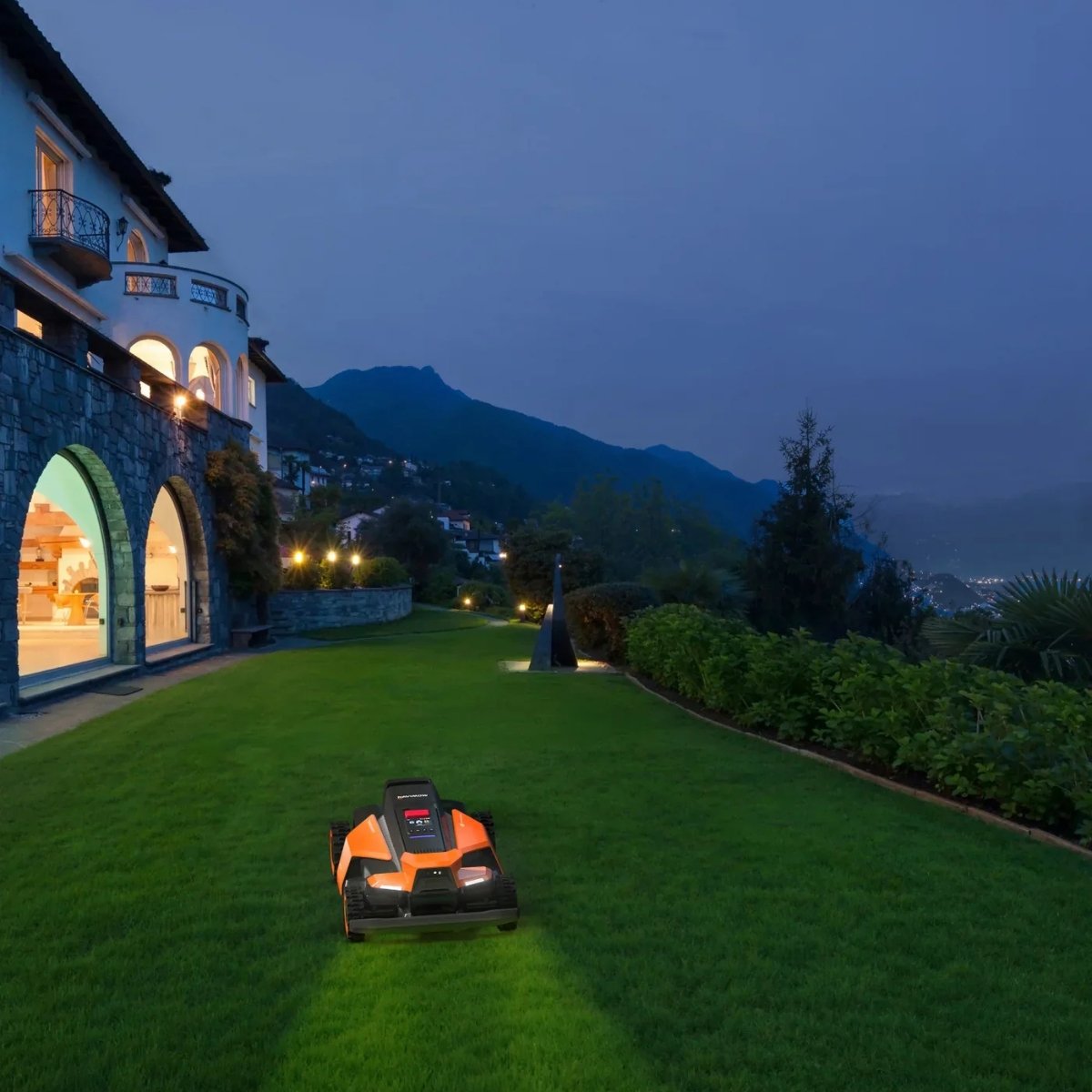

Clean, Quiet Operation
At just 68 dB(A), the Terranox is quiet enough for evening or nighttime use. With zero direct emissions, it supports cleaner air and a more comfortable environment than fuel-powered equipment.

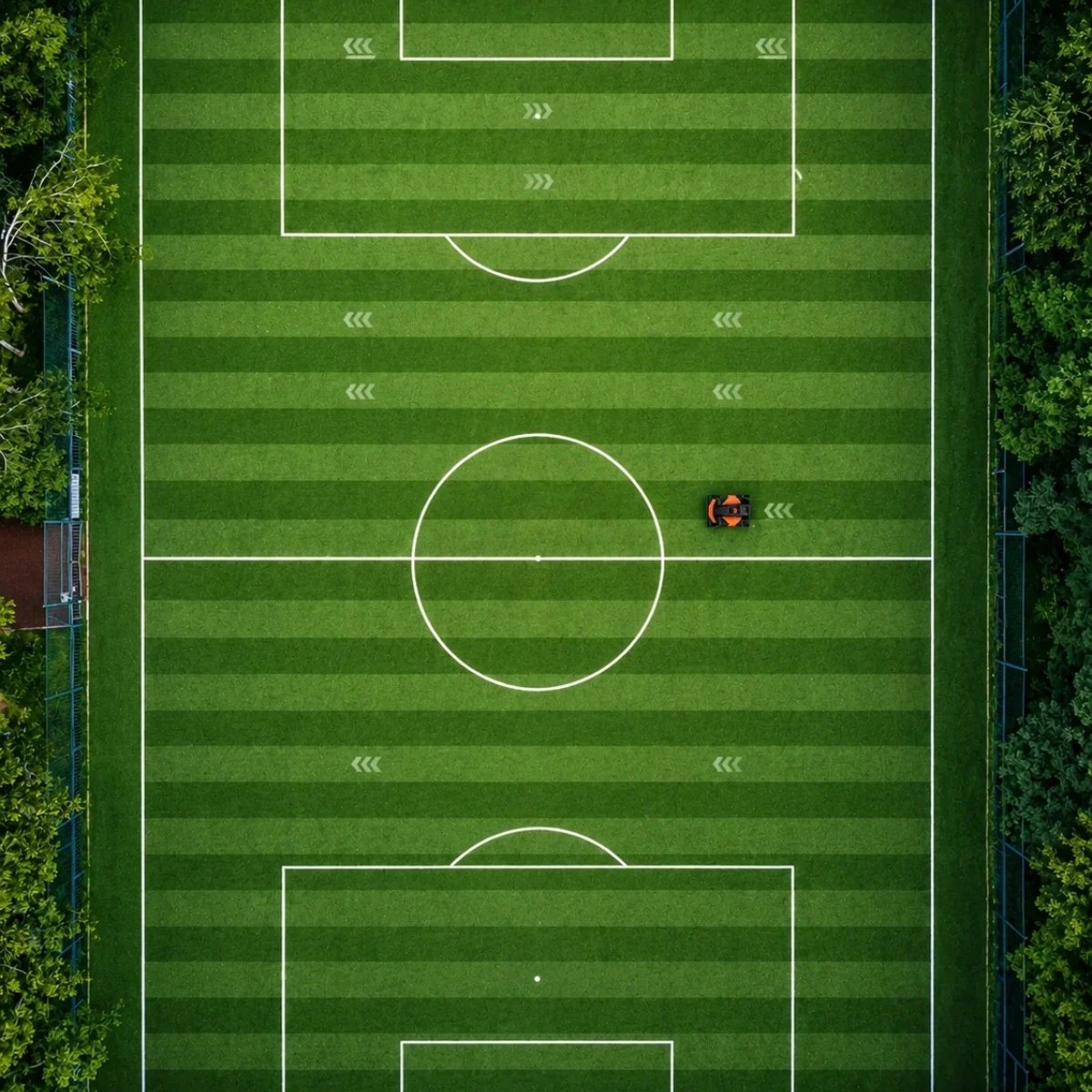

Built for Every Kind of Ground
- Sports turf: consistent, well-presented playing surfaces.

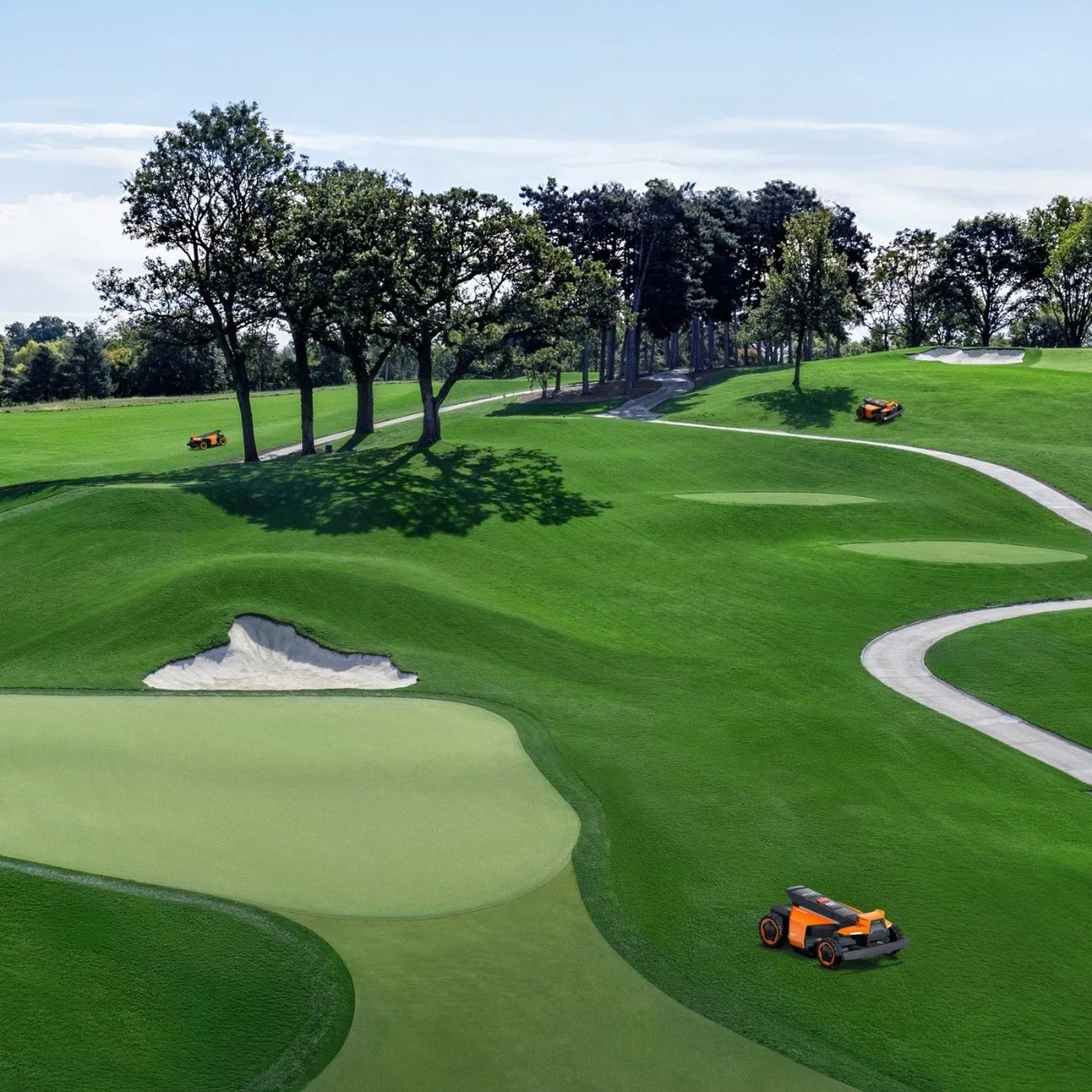

- Golf courses: precise, repeatable mowing across large areas.
- Large parks: hands-off mowing for wide-open public spaces.
- Headquarters and campuses: neat grounds without the labour of manual mowing.
Weather-Ready and Secure

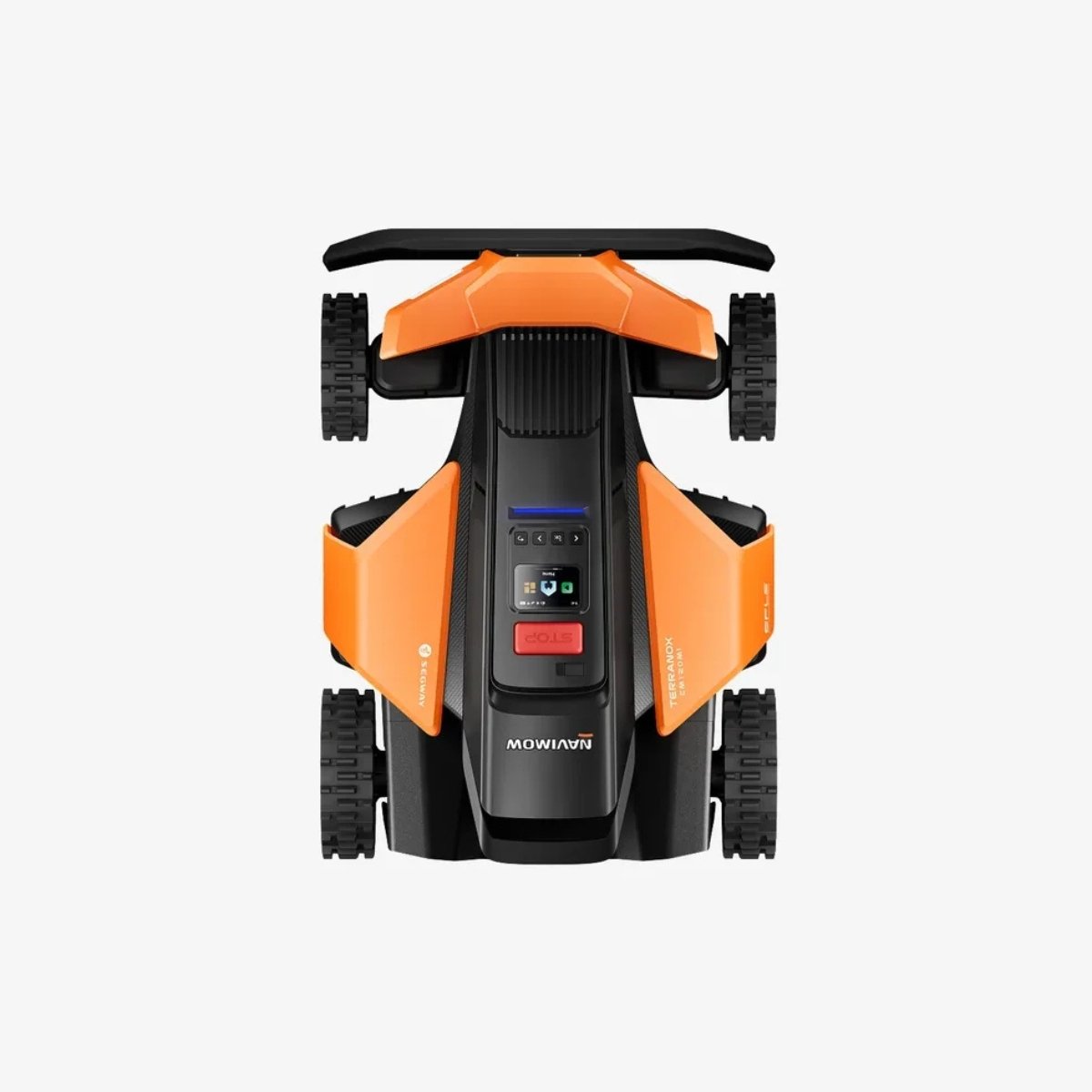

The Terranox is IP66 rated, with a weather forecast function and rain sensor. GPS tracking and an out-of-boundary alarm help protect your investment, and over-the-air (OTA) updates keep it up to date. A 3.5 inch colour LCD shows status at a glance.
4G Data Included
The CM120M1 includes 1 year of 4G data. After that, renewal is approximately $70 per year through an in-app purchase.
Navimow Terranox CM120M1 Specifications
| Recommended mowing area | 12,000m² |
| Mowing area per charge | 900m² |
| Mowing speed | Up to 3.5 km/h |
| Battery | 20Ah / 432Wh |
| Full-charge mowing time | 145 minutes |
| Charging time | 145 minutes |
| Positioning | EFLS™ NRTK (Network RTK, 360° vision and VIO) |
| Object detection | VisionFence™ (360° RGB camera and ToF), 200+ objects |
| Drive | 4WD with dual independent steering motors |
| Maximum slope | 40° (84%) |
| Vertical passing ability | 7cm (15cm on gentle slopes) |
| Cutting width | 43cm |
| Cutting height | 20–95mm (automatic adjustment) |
| Cutting system | 2 discs, 12 blades, floating cut, anti-clogging |
| Noise level | 68 dB(A) |
| Protection rating | IP66 |
| Weather adaptation | Weather forecast and rain sensor |
| Dimensions | 850 × 610 × 351mm |
| Net weight | 29.6kg |
| Display | 3.5 inch colour LCD |
| Connectivity | Bluetooth, Wi-Fi and cellular (1 year of 4G data included) |
| Security | GPS tracking and out-of-boundary alarm |
| Features | Auto mapping, auto recharge, multi-zone management, signal enhancement antenna, OTA updates |
| Warranty | 2 years (device), 1 year (battery) |
Protect Your Terranox with Garage X
The Garage X is designed to suit the Terranox as well as the Navimow X4 Series. It’s available separately for $799, and it’s open for pre-order now with stock arriving in December 2026.
Which Terranox Is Right for You?
The CM120M1 suits areas up to 12,000m². For bigger grounds, the Navimow Terranox CM240M1 covers up to 24,000m² with a larger 25Ah battery. For smaller properties, the Navimow X450 covers up to 5,000m² with the same 4WD platform.
Not sure which model suits your lawn? See our robot lawn mower buying guide.
Frequently Asked Questions About the Navimow Terranox CM120M1
Everything you need to know before you buy. Can’t find your answer? Get in touch and our team will be happy to help.
Can I pre-order the Terranox CM120M1?
Yes. The CM120M1 is available to pre-order now, with shipping scheduled for 6 November 2026.
How much is the pre-order deposit, and can I get it back?
Pre-ordering requires a 10% deposit, based on the price shown on this page. Your deposit is fully refundable for any reason before your order is dispatched. Shipping is scheduled for 6 November 2026.
How big an area can the CM120M1 mow?
The CM120M1 is recommended for areas up to 12,000m². It mows around 900m² per charge.
What kinds of sites is the Terranox designed for?
It’s engineered for large-scale commercial lawn care, including sports turf, golf courses, large parks, schools, councils and company headquarters.
Does the Terranox need boundary wires or an antenna?
No boundary wires are needed. With Network RTK over 4G there’s also no need to install a local antenna. In areas with no 4G, install the included Antenna RTK.
Can the Terranox handle steep slopes?
Yes. The four-wheel-drive system climbs slopes up to 40° (84%) and handles uneven ground and rugged paths.
Will it damage the turf when turning?
It’s designed not to. Xero-Turn steering has received the Turf-Safe award from TÜV Rheinland for minimal lawn damage, with zero-turn capability on the spot and gentle Ackermann steering in arcs.
How does it avoid people, animals and objects?
VisionFence™ uses a 360° RGB camera and ToF sensors to recognise more than 200 types of obstacles, including animals and yard objects.
Can I manage more than one Terranox?
Yes. NavimowFleet™, available through an app and a web portal, is designed for commercial operators deploying multiple Navimow units across one or many sites.
How loud is the Terranox?
It operates at 68 dB(A), which is quiet enough for evening or nighttime use. It also has zero direct emissions.
Is the Terranox waterproof?
It is IP66 rated, and it has a weather forecast function and rain sensor.
Is 4G data included, and what does it cost after that?
The CM120M1 includes 1 year of 4G data. After that, renewal is approximately $70 per year through an in-app purchase.
What is the difference between the CM120M1 and CM240M1?
Both share the same 4WD platform, navigation, obstacle detection and 43cm dual-deck cutting system. The CM120M1 has a 20Ah battery and suits areas up to 12,000m², while the CM240M1 has a 25Ah battery and suits areas up to 24,000m², with 2 years of 4G data included.
Can I buy a garage for the Terranox?
Yes. The Garage X is designed to suit the Terranox as well as the Navimow X4 Series. It’s available separately for $799, and it’s open for pre-order now with stock arriving in December 2026.
What warranty does the CM120M1 have?
It comes with a 2-year warranty on the device and a 1-year warranty on the battery.
